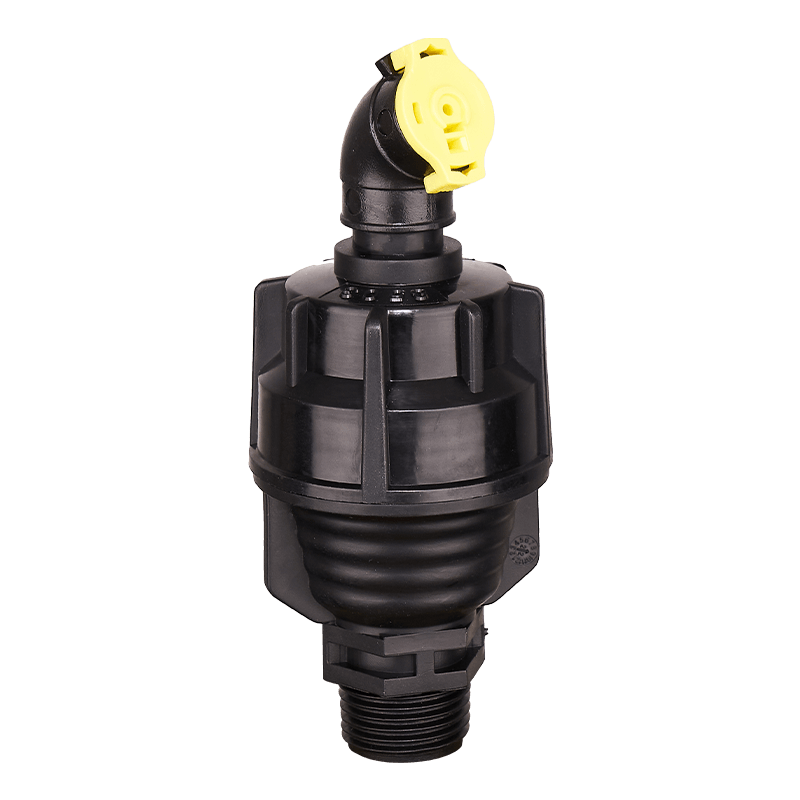

Nozzle specification data sheet | |
8503 XX | |
Part No. | Nozzle Color |
8503 | XX |
Nozzle CODE | Color |
N1 | Blue |
N2 | Yellow |
N3 | Green |
N4 | Red |
N5 | Brown |
Item# | Qty/ctn | N.W./ctn | G.W./ctn | LxWx H (cm) | m³ |
ZM8503 | 250 | 10.25Kgs | 10.85Kgs | 47×38×25 | 0.045 |
Performance data | |||||||||||||||||
Nozzle Color | Blue | Yellow | Green | Red | |||||||||||||
Pre. | bar | 2.5 | 3 | 3.5 | 4 | 2.5 | 3 | 3.5 | 4 | 2.5 | 3 | 3.5 | 4 | 2.5 | 3 | 3.5 | 4 |
Flow Rate | m³/h | 0.36 | 0.395 | 0.425 | 0.455 | 0.45 | 0.495 | 0.53 | 0.57 | 0.55 | 0.6 | 0.65 | 0.695 | 0.67 | 0.71 | 0.77 | 0.82 |
Dia. | m | 17 | 17 | 16.5 | 16.5 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 21 | 21 | 21 | 21 |
Brown nozzle for road protector only | |||||
Nozzle Color | Brown | ||||
Pre. | bar | 2.5 | 3 | 3.5 | 4 |
Flow Rate | m³/h | 0.32 | 0.35 | 0.38 | 0.405 |
Dia. | m | 16 | 16 | 16 | 16 |
