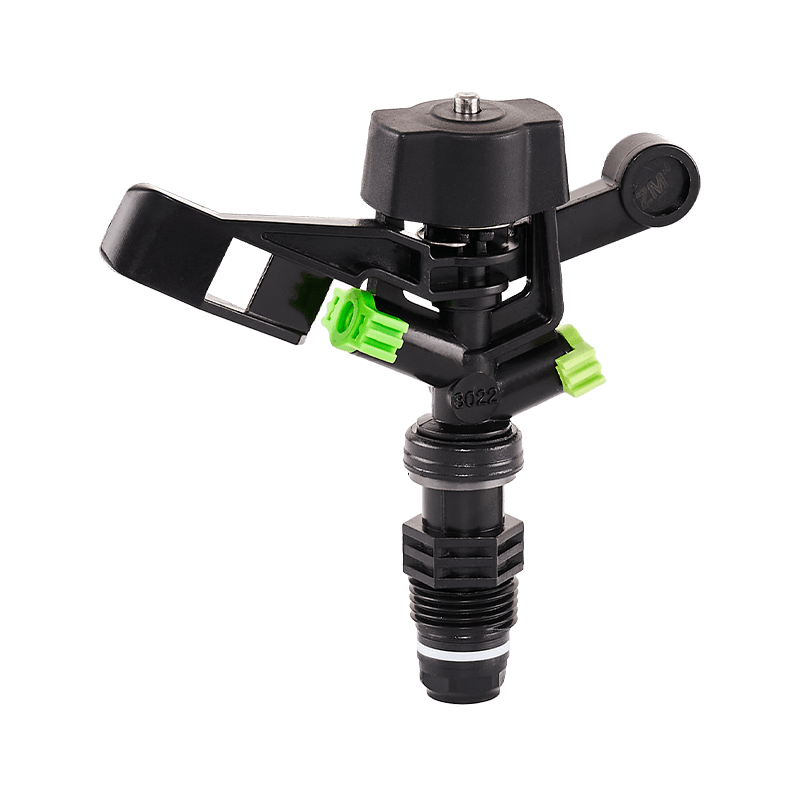

Nozzle specification data sheet | ||
8022 xx xx | ||
Part No. | Nozzle Size | Nozzle Size |
8022 | XX | XX |
Nozzle Size | Inch | MM |
#50 | 0.07" | 1.8 |
#44 | 0.086" | 2.3 |
06s | 0.095" | 2.4 |
6 | 3/32" | 2.5 |
7 | 7/64" | 2.8 |
06 + | 0.118" | 3 |
8 | 1/8" | 3.2 |
9 | 9/64" | 3.5 |
10 | 5/32" | 4 |
PG | plug | plug |
Item# | Qty/ctn | N.W./ctn | G.W./ctn | LxWx H (cm) | M3 |
ZM8022 | 75 | 3.86Kgs | 4.24Kgs | 48.5x25.5x13.5 | 0.018 |
Performance data | 2.3 x 1.8 (Grey) | 2.5 x 1.8 (Purple) | 2.8xl.8 (Orange) | 3.0 x 1.8 (Red) | 3.2xl.8 (Green) | 3.5 x 2.5 (Blue) | 4.0 x 2.5 (Black) | ||||||||
Nozzle Size | mm | ||||||||||||||
Pre. | bar | 2.5 | 3 | 2.5 | 3 | 2.5 | 3 | 2.5 | 3 | 2.5 | 3 | 2.5 | 3 | 2.5 | 3 |
Flow Rate | m³/h | 0.51 | 0.58 | 0.58 | 0.63 | 0.69 | 0.76 | 0.76 | 0.84 | 0.82 | 0.9 | 1.06 | 1.16 | 1.26 | 1.38 |
Rad. | m | 11 | 11 | 10.5 | 10.5 | 11 | 11 | 11 | 11.5 | 11.5 | 12 | 12.25 | 12.5 | 12.5 | 12.75 |
Performance data | 2.3 x 1.8 (Grey) | 2.5 x 1.8 (Purple) | 2.8xl.8 (Orange) | 3.0 x 1.8 (Red) | 3.2xl.8 (Green) | 3.5 x 2.5 (Blue) | 4.0 x 2.5 (Black) | ||||||||
Nozzle Size | mm | ||||||||||||||
Pre. | bar | 3.5 | 4 | 3.5 | 4 | 3.5 | 4 | 3.5 | 4 | 3.5 | 4 | 3.5 | 4 | 3.5 | 4 |
Flow Rate | m³/h | 0.6 | 0.64 | 0.67 | 0.72 | 0.82 | 0.86 | 0.9 | 0.97 | 0.98 | 1.04 | 1.24 | 1.33 | 1.48 | 1.58 |
Rad. | m | 11 | 11 | 10.5 | 10.75 | 11 | 11 | 11.5 | 11.5 | 12 | 12 | 12.75 | 13 | 13 | 13.25 |
Performance data | 2.3 (Grey) | 2.4 (Square, Yellow) | 2.5 (Purple) | 2.8 (Orange) | 3.0 (Red) | 3.2 (Green) | 3.5 (Blue) | 4.0 (Black) | ||||||||||||||||||
Nozzle Size | mm | |||||||||||||||||||||||||
Pre. | bar | 2 | 3 | 4 | 2.5 | 3 | 3.5 | 4 | 2 | 3 | 4 | 2 | 3 | 4 | 2 | 3 | 4 | 2 | 3 | 4 | 2 | 3 | 4 | 2.0 | 3 | 4 |
Flow Rate | m³/h | 0.33 | 0.39 | 0.46 | 0.36 | 0.39 | 0.43 | 0.46 | 0.35 | 0.43 | 0.49 | 0.45 | 0.55 | 0.63 | 0.51 | 0.53 | 0.72 | 0.57 | 0.7 | 0.81 | 0.66 | 0.81 | 0.93 | 0.85 | 1.03 | 1.18 |
Rad. | m | 10.75 | 11 | 11 | 9.5 | 9.5 | 10 | 10.5 | 10.75 | 11 | 11 | 11 | 11.5 | 12 | 11.5 | 12.25 | 12.5 | 11.75 | 12.25 | 12.5 | 12.5 | 13 | 13 | 12 | 13 | 13 |
