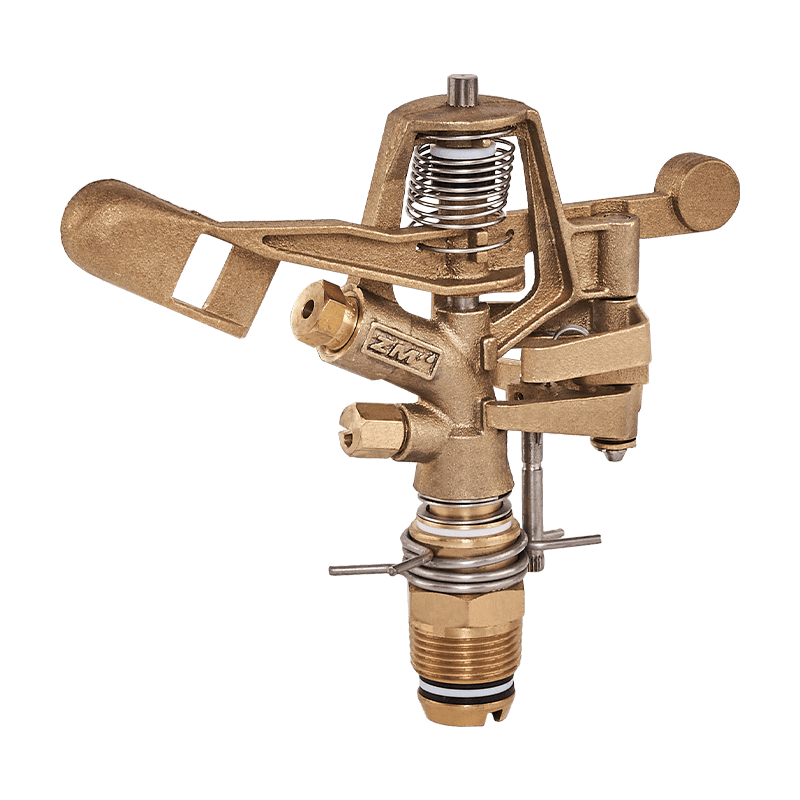

Nozzle specification data sheet | ||
8041 XX XX | ||
Part No. | Nozzle Size | Nozzle Size |
8041 | XX | XX |
Nozzle Size | Inch | MM |
6 | 3/32" | 2.38 |
8 | 1/8" | 3.17 |
9 | 9/64" | 3.57 |
10 | 5/32" | 3.96 |
11 | 11/64" | 4.36 |
12 | 3/16" | 4.76 |
13 | 13/64" | 5.15 |
14 | 7/32" | 5.55 |
PG | PLUG | PLUG |
Item# | Qty/ctn | N.W./ctn | G.W./ctn | LxWxH (cm) | M3 |
ZM8041 | 24 | 13.11Kgs | 13.72Kgs | 43x34x15.5 | 0.02 |
Nozzle Size | Pre. | Flow Rate | Rad. |
kg/cm2 | m³/h | m | |
5/32"×Plug | 1.75 | 0.795 | 12 |
2.1 | 0.87 | 12 | |
2.45 | 0.94 | 12 | |
2.8 | 1.01 | 13 | |
3.15 | 1.07 | 13 | |
3.5 | 1.13 | 13 | |
3.85 | 1.185 | 13 | |
4.2 | 1.235 | 14 | |
11/64"×Plug | 1.75 | 0.96 | 12 |
2.1 | 1.05 | 12 | |
2.45 | 1.14 | 13 | |
2.8 | 1.215 | 13 | |
3.15 | 1.29 | 13 | |
3.5 | 1.36 | 14 | |
3.85 | 1.43 | 14 | |
4.2 | 1.48 | 14 | |
3/16"×Plug | 1.75 | 1.135 | 12 |
2.1 | 1.245 | 13 | |
2.45 | 1.355 | 13 | |
2.8 | 1.455 | 13 | |
3.15 | 1.545 | 14 | |
3.5 | 1.63 | 14 | |
3.85 | 1.705 | 14 | |
4.2 | 1.775 | 14 | |
13/64"×Plug | 1.75 | 1.335 | 13 |
2.1 | 1.475 | 13 | |
2.45 | 1.605 | 13 | |
2.8 | 1.725 | 14 | |
3.15 | 1.83 | 14 | |
3.5 | 1.925 | 14 | |
3.85 | 2.01 | 1400 | |
4.2 | 2.085 | 15 | |
7/32"×Plug | 1.75 | 1.55 | 13.00 |
2.1 | 1.715 | 1300 | |
2.45 | 1.875 | 14 | |
2.8 | 2.01 | 14 | |
3.15 | 2.135 | 14 | |
3.5 | 2.24 | 15 | |
3.85 | 2.335 | 15 | |
4.2 | 2.405 | 16 |
Nozzle Size | Pre. | Flow Rate | Rad. |
kg/cm2 | m³/h | m | |
3.96×2.38 5/32"×3/32" |
1.75 | 1.095 | 12.5 |
2.1 | L190 | 13 | |
2.45 | 1.29 | 13.5 | |
2.8 | 1.385 | 13.S0 | |
3.15 | 1.47 | 13.5 | |
3.5 | 1.55 | 13.5 | |
3.85 | 1.625 | 14 | |
4.2 | 1690 | 14 | |
4.36×2.38 11/64"×3/32" |
1.75 | 1260 | 12.5 |
2.1 | 1.375 | 13.S0 | |
2.45 | 1.49 | 13.5 | |
2.8 | 1.59 | 14 | |
3.15 | 1.69 | 14 | |
3.5 | 1.785 | 14.5 | |
3.85 | 1870 | 14.5 | |
4.2 | 1.95 | 14.S0 | |
4.76×2.38 3/16"×3/32" |
1.75 | 1.43 | 13 |
2.1 | 1.57 | 14 | |
2.45 | 1.7 | 14 | |
2.8 | 1.83 | 14.5 | |
3.15 | 1940 | 14.5 | |
3.5 | 2.05 | 15 | |
3.85 | 2.145 | 15 | |
4.2 | 2.23 | 15.5 | |
4.76×3.17 3/16"×1/8" |
1.75 | 1.682 | 13 |
2.1 | 1.848 | 14 | |
2.45 | 2.005 | 14 | |
2.8 | 2.15 | 14.5 | |
3.15 | 2.29 | 14.5 | |
3.5 | 2.4 | 15 | |
3.85 | 2.52 | 1500 | |
4.2 | 2.63 | 15.5 | |
5.15×3.17 13/64"×1/8" |
1.75 | 1.88 | 13 |
2.1 | 2.075 | 14 | |
2.45 | 2.255 | 14.S0 | |
2.8 | 2.42 | 15 | |
3.15 | 2.565 | 1500 | |
^S0 | 2.7 | 15.5 | |
2.855 | 15.5 | ||
470 | 2950 | 16 | |
5.55×3.17 7/32"×1/8" |
1.75 | 2.095 | 13.5 |
?10 | 2.315 | 14.5 | |
745 | 2.52 | 15 | |
2.8 | 2.7 | 15.5 | |
3.15 | 2880 | 15.5 | |
3.5 | 3.02 | 16 | |
3.85 | 3155 | 1600 | |
4.2 | 3.27 | 16 |
Establish in
Plant area(㎡)
Construction area(㎡)
Partners
The company always adheres to customer centeredness and prioritizes customer interests; Always adhering to the business philosophy of "integrity, quality", with a sincere attitude and win-win philosophy, we warmly make friends with friends from all over the world.
Integrity, quality.
Sincere attitude and win- win concept.
Profitably providing high-value products and services that promote smart irrigation and water solution applications, supports a sustainable future.
Achieving customer satisfaction by meeting or exceeding customer expectations.
Achieving employees' value through more training and support.
Follow company news and understand industry trends.
View more1. Unique Structural DesignImpact sprinklers use a unique structural design that consists of a rotating sprayer head con...

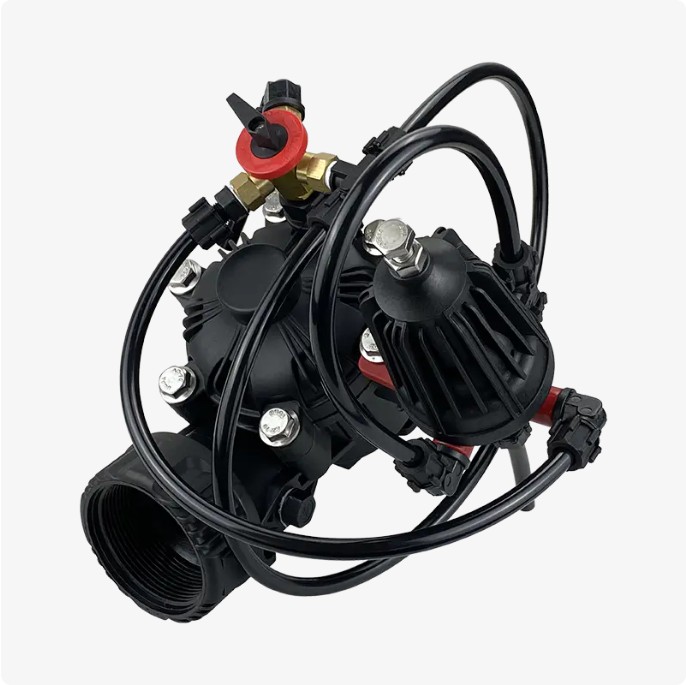

View moreThe Pressure Relief Valve is a key hydraulic control device. Its main function is to reduce the pressure of high-pressur...
View moreThe ZM8024 Plastic impact sprinkler is an efficient irrigation tool designed for agricultural and landscape irrigation. ...
View moreThe precise spray pattern and clear edge design of the FF Adjustable Nozzle ensure uniform and effective spraying, avoid...
View moreAs an advanced irrigation equipment, RF NOZZLE incorporates many innovative technologies in its design to ensure its eff...
View moreAs an efficient and reliable irrigation nozzle solution, RF NOZZLE incorporates many innovative technologies in its desi...
View more1. Structural and design featuresThe T-type Solenoid Valve adopts a pilot diaphragm structure combined with nylon reinfo...

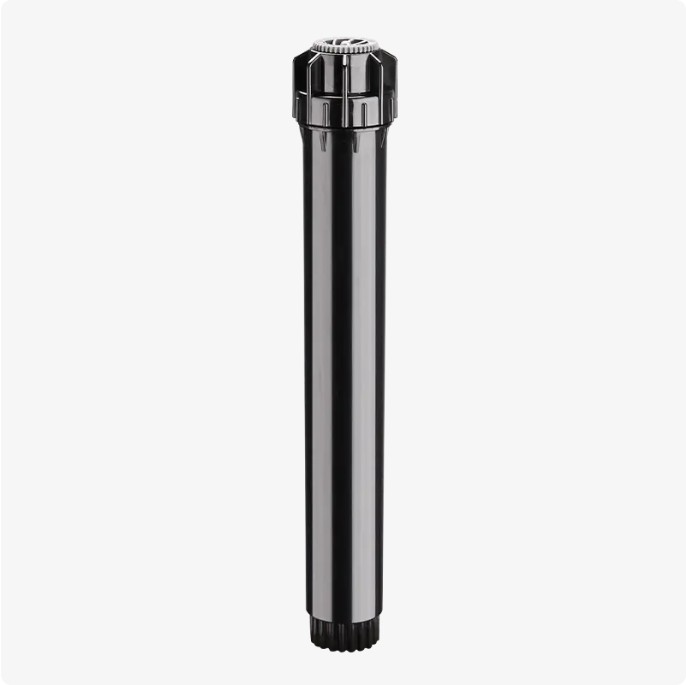

View moreIn modern irrigation systems, Pop-up Sprinkler SF04 stands out for its excellent performance and reliability, becoming t...
