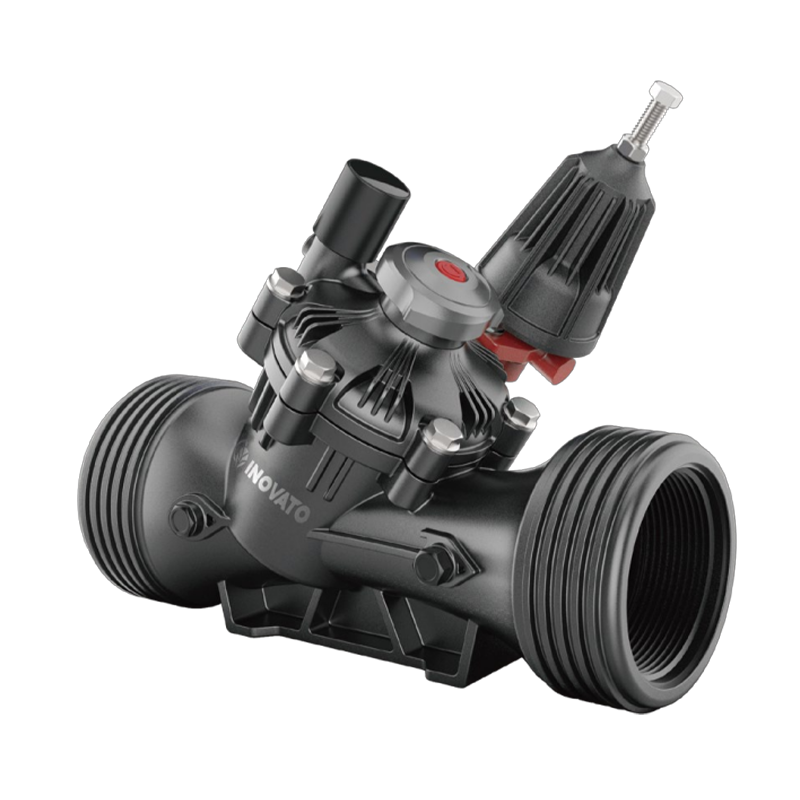

SPECIFICATION INOVATO SERIES |
|
Medium | Water |
Temp | Water temp≤53℃; Surrounding Temp≤80℃ |
Flow | 2”≤60.0m³/h,2½”≤65.0m³/h |
3”≤70.0m³/h,3”L≤70.0m³/h | |
3½”≤120.0m³/h,4”≤125.0m³/h | |
5”≤210.0m³/h,6”≤210.0m³/h | |
Pressure | 1.0—10.0Bar |
Output pressure | 0.8—6.5Bar |
Port Size | 2”,2½”,3”,3” L,3½”,4”,5”,6” |
Orifice | DN50,DN65,DN80,DN80L,DN80,DN100,DN125,DN150 |
Voltage:AC220V/AC110V/AC24V,50—60HZ | AC220V/AC110V/AC24V,50—60HZ DC24V/DC12V/DC9V(customization) |
DC Latching | |
Material | Valve body—Glass-filled Nylon |
Sealing—NBR/EPDM | |
The movable core—430F | |
The static core—430F | |
Springs—SUS304 | |
Shading coil—Red Copper |
